Description

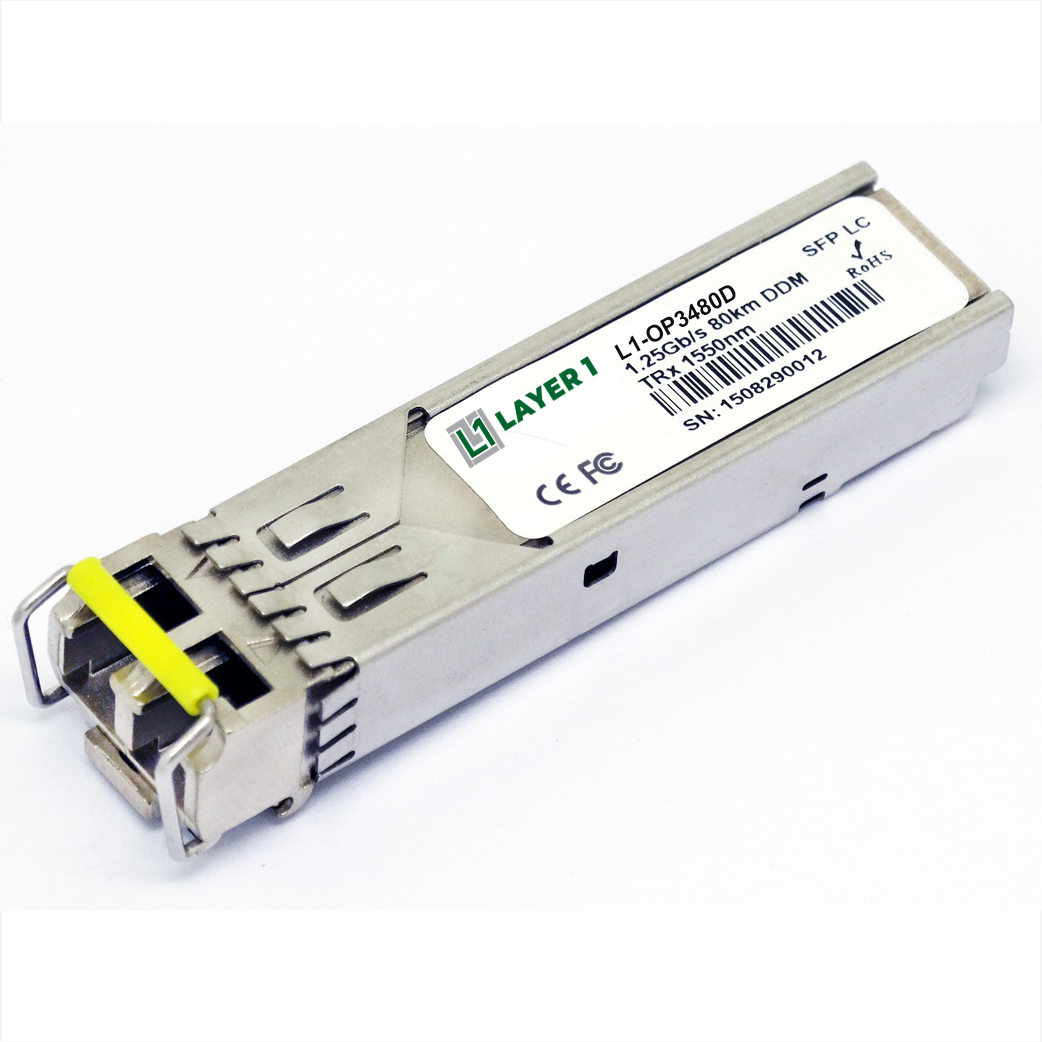

Layer 1 Transceiver is a high performance, cost effective module which have a Duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals.
The receiver section uses a PIN receiver and the transmitter uses 1550 nm DFB laser, up to 22dB link budge ensure this module 1000Base Ethernet 80Km application.
KEY FEATURES
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- 1550nm DFB laser transmitter
- Duplex LC connector
- RoHS compliant and Lead Free
- Up to 80 km on 9/125μm SMF
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Low power dissipation <1W typically
- Commercial operating temperature range: 0°C to 70°C
APPLICATIONS
- Metro/Access Networks
- 25 Gb/s 1000Base-ZX Ethernet
- 1×Fibre Channel
- Other Optical Link
